Source references.
Check the exact model.
Original outline and assembly-reference images for selected fluid- and manual-valve groups. Open the whole file and review its scope before using it for an installation.
What these files
can help you check.
The library contains 13 WebP source images, each with its complete frame and a direct link to the full file.
Review the source context
Some sheets show lettered outlines, some give particular variant examples, and others show assemblies or connection arrangements. Use the series link alongside the file.
Confirm the current selected drawing
A family reference does not confirm the ordered model’s dimensions, materials, circuit, rating or revision. Request the current model-specific drawing or document when needed.
These are source image references, not a PDF/CAD library, certificates or approval of a machine safety function.
Fluid-valve
outline references.
Six source sheets. Individual notes distinguish lettered outlines from mixed example dimensions.

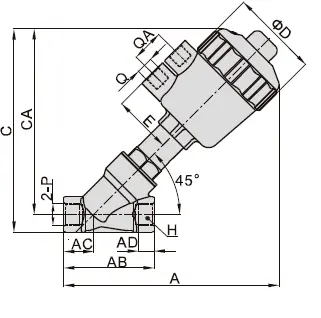

2J angle-seat outline
Lettered outline and angled actuator reference. It does not identify selected-model mounting dimensions.

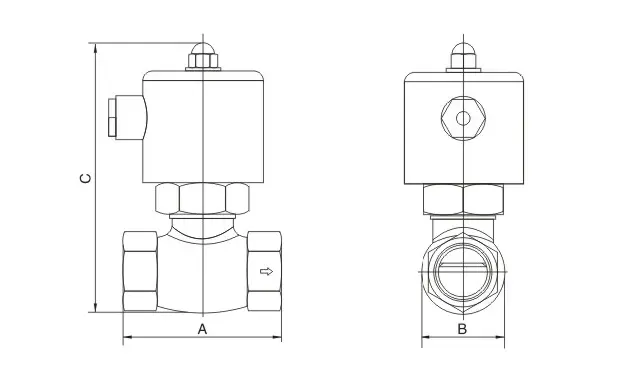

US valve outline
Lettered valve/coil views without a complete-model numeric dimension matrix. Confirm the current selected drawing.

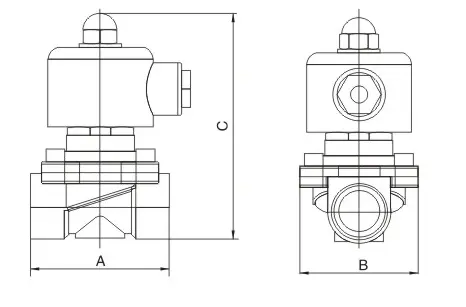

2W range outline
Source outlines with lettered dimensions. Confirm exact size and construction before using dimensions.

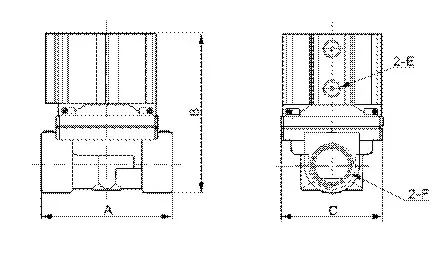

2Q air-operated outline
Lettered outline and port references, not confirmation of selected-model installation dimensions or control conditions.

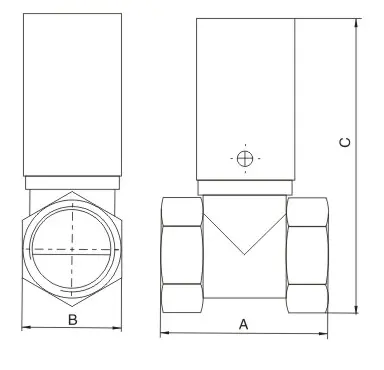

Q22HD outline
Lettered outline only. Confirm the selected model, mounting dimensions and actual connection standard.

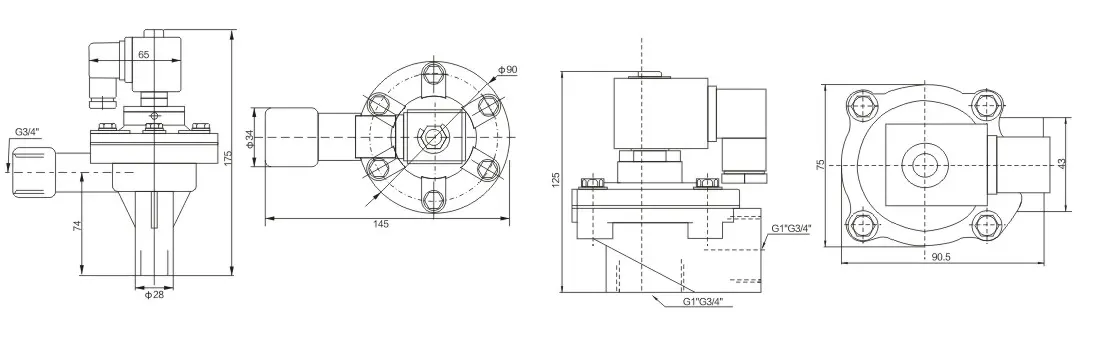

DMF pulse-valve examples
Two source shapes with example dimensions; no complete model or revision. Do not assign the figures to every DMF-Y/T/P variant.
Manual-valve
source references.
Seven whole sheets: variant examples, assemblies, connection arrangements and outline views.

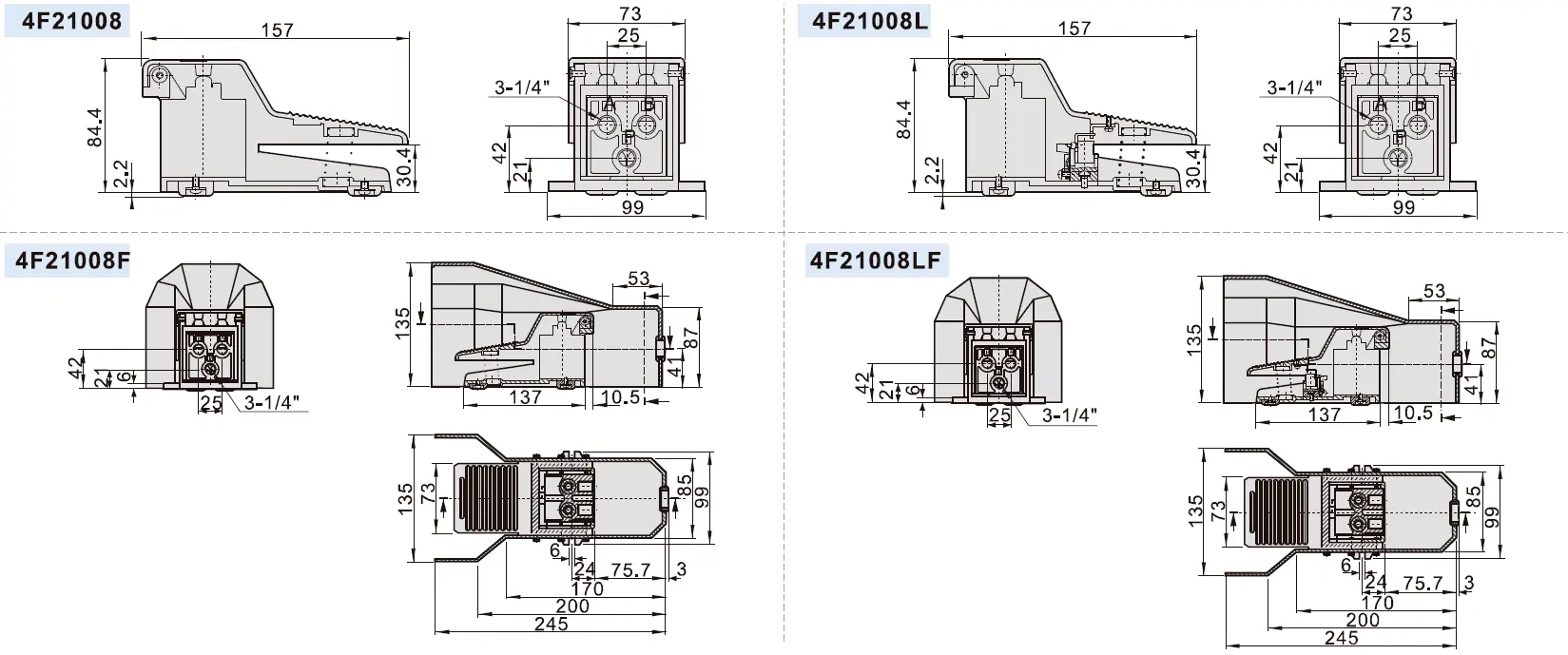

4F pedal-valve examples
Particular source operator variants with dimensions. Match the full selected code, ports and current mounting drawing.
3F / 3FM pedal-valve examples
Specific 3F/3FM examples. Keep constructions and ports distinct; confirm the selected-model drawing.

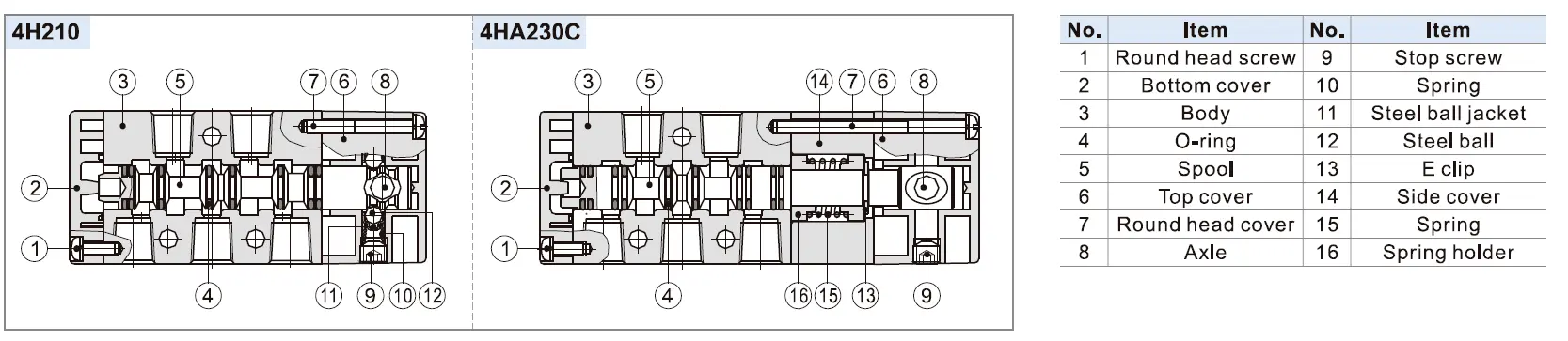

4H assembly reference
4H210 / 4HA230C cutaways and parts key. Not an external mounting drawing or confirmation of a 4H330C configuration.
4HV range: 4HVL assembly
A 4HVL locking-handle cutaway and parts key. It does not establish all 4HV models’ travel, construction or mounting.

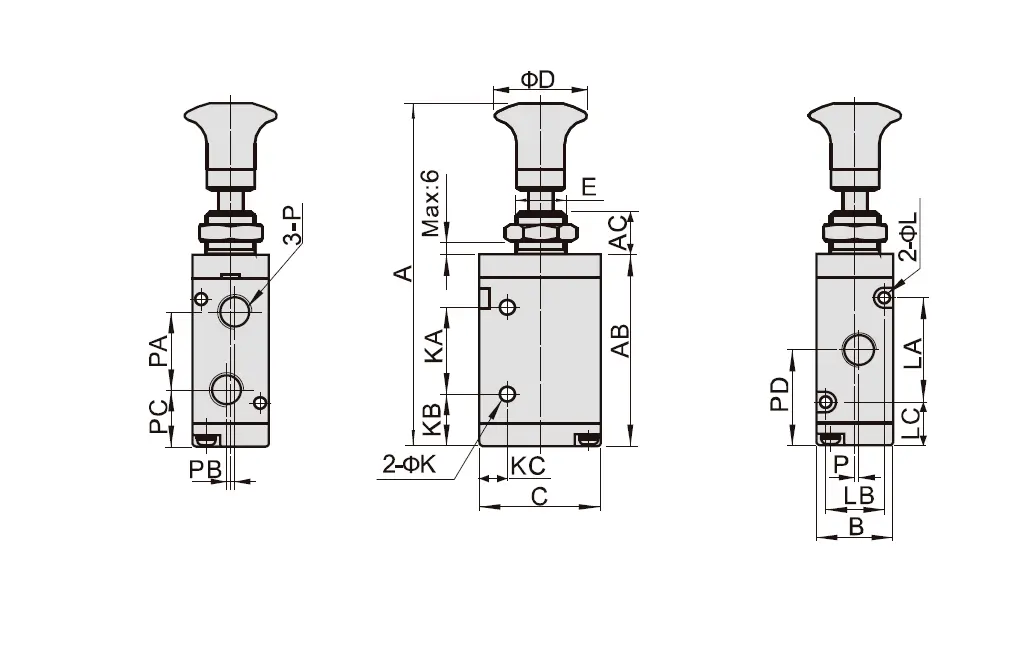

3L outline reference
Whole lettered outlines without a complete-model numeric size matrix. Confirm exact 3L connections and mounting.
4L outline reference
Whole lettered outlines without a complete-model numeric size matrix. Confirm working/exhaust connections and mounting.

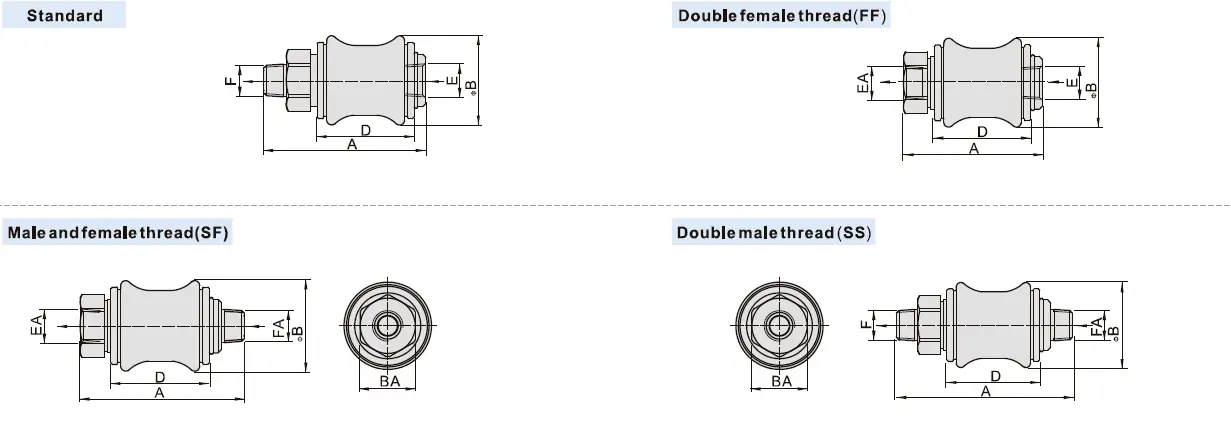

HSV connection configurations
Standard, FF, SF and SS arrangements. Confirm size and mating thread; not an isolation or flow-rating approval.
Specify the model.
List the documents needed.
Use the complete code and actual operating conditions when matching a reference to your requirement.
Prepare a component brief
List the full model, interfaces and document references. The brief tool creates text on your device to copy or download.
Create a component brief
